A Step-by-Step Guide to Replacing Your Xerox C410/C415 Color Imaging Unit

Submitted by Matthew Eberhart on Fri, 06/14/2024 - 16:16


You've spent hours perfecting a presentation or a project, only to find that your printer delivers lackluster results—faded colors, streaks, or smudges that mar your hard work.

These are signs that it’s time to replace your color imaging unit. Imagine the relief of crisp, vibrant prints once again filling your workspace without the hassle of troubleshooting every time you hit "Print."

At Strategic Technology Partners of Texas (STPT), we understand these frustrations all too well. With 35+ years of experience servicing printers, we've replaced thousands of color imaging units and ensured smooth operation for our clients.

Today, our seasoned technician, Matthew, will provide expert guidance on replacing the color imaging unit in your Xerox C410/C415 printers. He will take you step by step so you can learn how to perform this tricky maintenance task with ease.

Why Replace Your Color Imaging Unit?

The color imaging unit in your printer plays a crucial role in producing high-quality prints. Over time and extensive use, these units wear out. This leads to faded colors, streaks, or even complete print failures. Regular maintenance and timely replacement of components like the imaging unit are essential to maintain print quality and prolong your printer's lifespan.

For other maintenance tutorials on the Xerox C410 and C415 printers, check out the guides below:

Now, let’s dive in!

Steps to Replace Color Imaging Unit on Xerox C410/C415

Step 1: Open the Front Cover

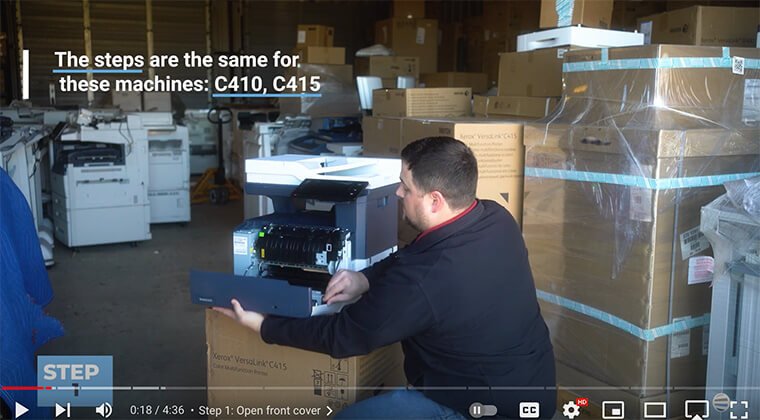

The first thing you’ll need to do is open the front cover of your Xerox VersaLink C410/C415 printer.

Printer technician opens front cover of Xerox C410/C415 printer

Step 2: Open B Section

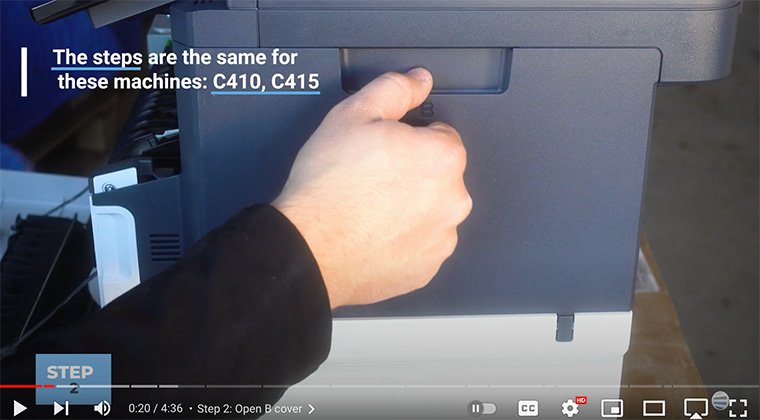

Then, open the side cover labeled ‘B’ and swing it open.

Printer technician opens side cover on Xerox C410/C415 printer

Step 3: Remove the Side Cover

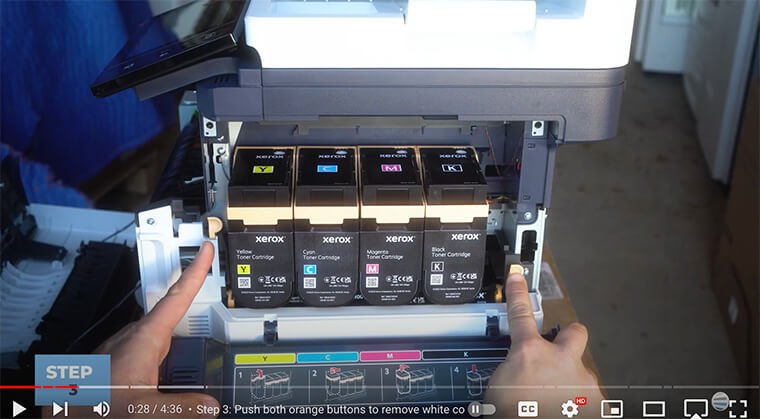

Inside are two little orange push buttons. Push these buttons to release the white ‘A’ section from the machine. The side cover comes out in one piece.

Printer technician presses buttons to remove side cover of Xerox C410/C415 printer

Step 4: Remove the Waste Toner Bottle

With the side cover out of the way, find the waste toner bottle on the bottom. Push the two orange buttons(one above, one below) to release it—be careful as it is spring-loaded. Carefully remove the waste toner bottle and set it aside.

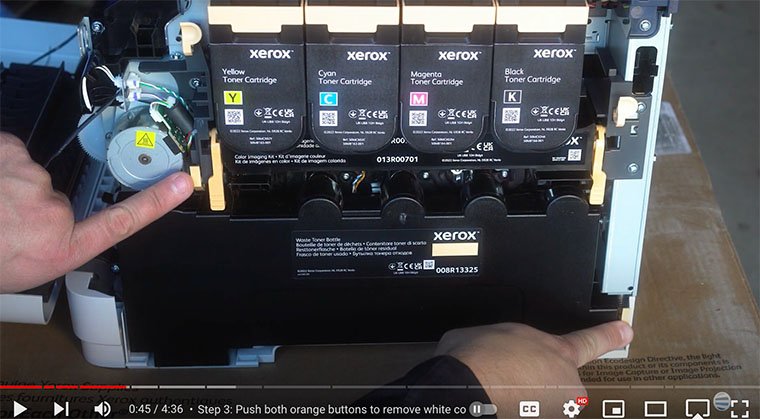

Printer technician presses orange buttons to remove waste toner bottle on Xerox C410/C415 printer

Step 5: Remove Toners

Next, remove all four toner cartridges by pushing up on the orange handle of each cartridge. Lift out each one to access the Imaging unit.

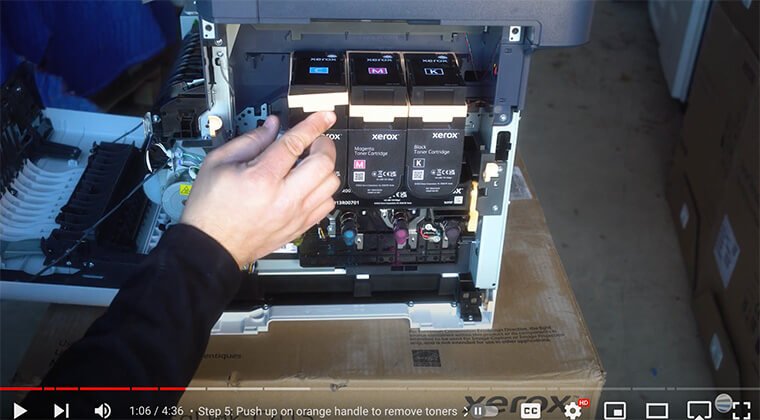

Printer technician removes toner cartridges from Xerox C410/C415 printer

Step 6: Remove the Old Imaging Unit Kit

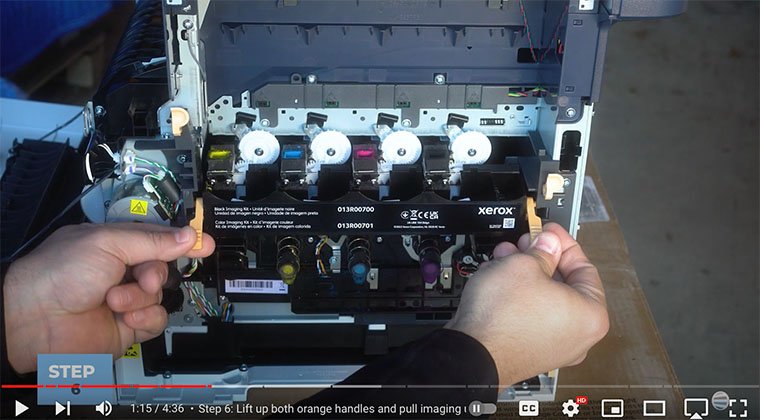

With the toners removed, it's time to remove the imaging unit kit. Lift both orange handles located on the sides of the unit and pull them straight out from the machine until it stops. Do not force it.

Printer technician lifts orange handles of imaging unit kit of Xerox C410/C415 printer

Then, find two long handles on the sides of the kit. Grab these, then press the orange button on the right side of the kit with your thumb to completely release the imaging unit kit. Slide the kit all the way out.

Printer technician removes imaging unit kit from Xerox C410/C415 printer

Step 7: Insert New Imaging Unit Kit

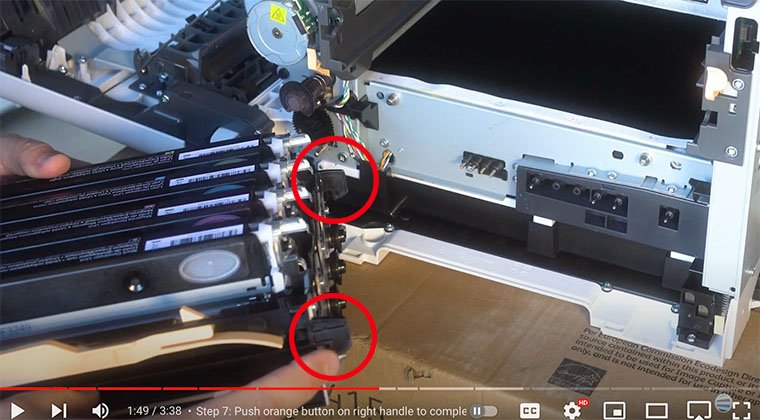

With your new imaging unit kit, locate the small black hooks on each end of the unit.

Printer technician points out small black hooks on imaging unit kit of Xerox C410/C415 printer

Ensure you slide the black hooks on each end of the imaging unit into the grey slides inside the printer.

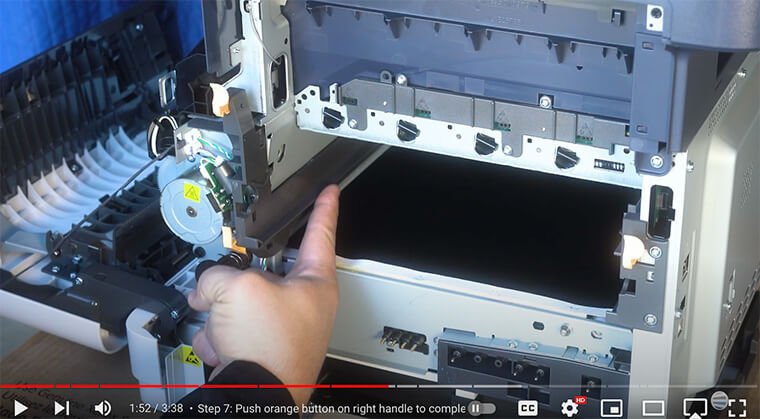

Printer technician points out grey slide where imaging unit will fit into on Xerox C410/C415 printer

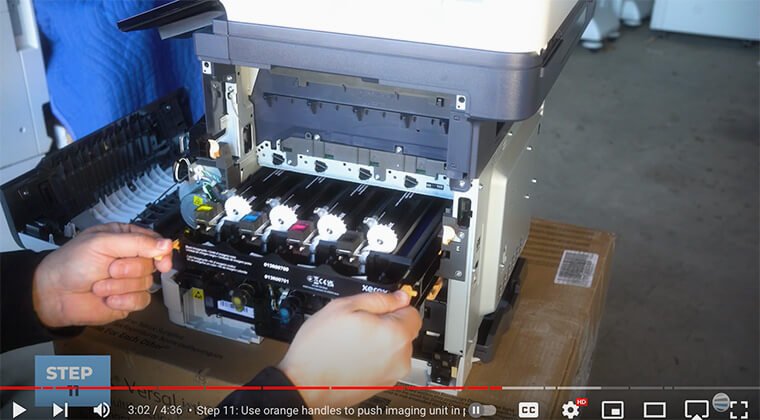

Now insert the new Imaging unit into the printer until the right side clicks. Then, use the orange handles to push the imaging unit all the way in until it clicks it into position.

Printer technician inserts new imaging unit into Xerox C410/C415 printer

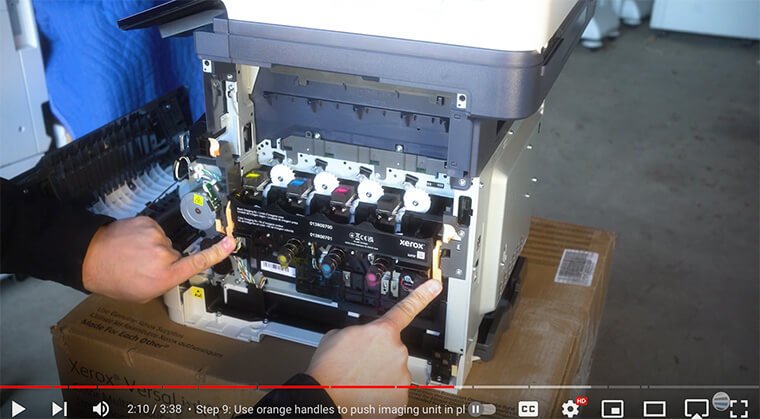

Swing the orange handles down once you’re done to lock it in place.

Printer technician locks new imaging unit into place on Xerox C410/C415 printer

Step 8: Re-insert Toners

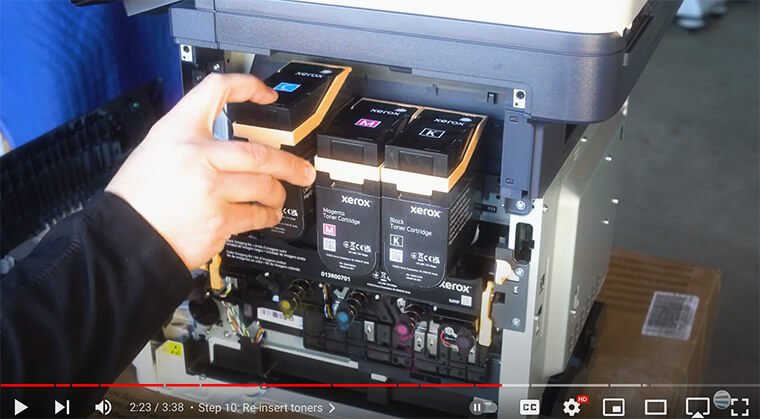

Re-insert the toner cartridges by pushing them down until you hear a click.

Printer technician re-inserts toners into Xerox C410/C415 printer

Step 9: Re-Insert Waste Toner Bottle

To reinstall the waste toner bottle, align the four springs with the matching color holes on the waste toner bottle.

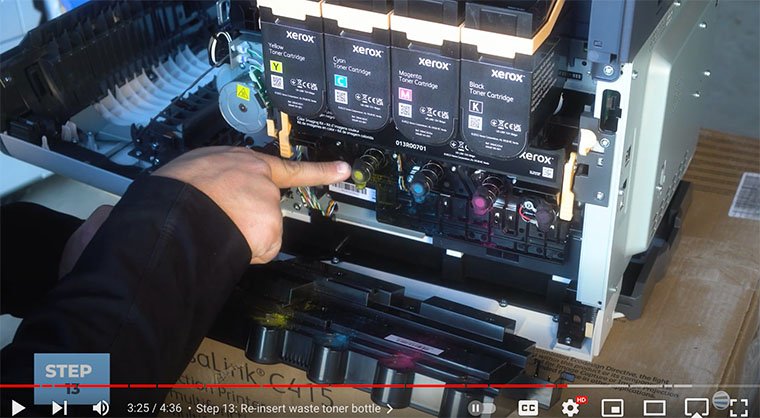

Printer technician points out color springs where imaging unit will align to on Xerox C410/C415 printer

Then, push the bottle back into its position until the orange tabs lock securely.

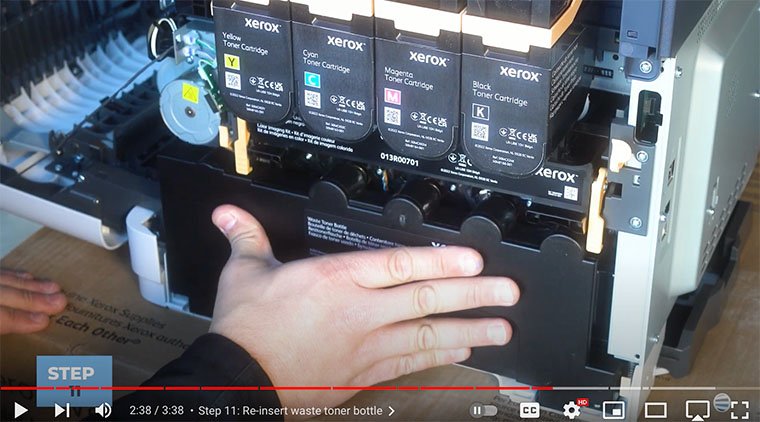

Printer technician re-inserts waste toner bottle on Xerox C410/C415 printer

Step 10: Re-assemble the Printer

With all components securely in place, re-install the side cover by aligning the white claws and swinging it up until it clicks. Then swing the white panel labeled ‘A’ up until it clicks.

Printer technician re-installs side cover on Xerox C410/C415 printer

Finally, close the B panel and the front cover to complete the task.

Congratulations! You got through this task and successfully replaced your color imaging unit.

The Importance of Replacing Your Color Imaging Unit

Faded color prints and overall lower print quality indicate that your color imaging unit is likely worn out. Ignoring these signs not only compromises your print quality but can also lead to costly repairs or premature printer replacement.

A worn-out imaging unit can cause a range of issues, including:

  • Color Fidelity Loss: Faded or inaccurate colors can distort your prints, impacting the overall visual appeal and professionalism of your documents.
  • Print Consistency Problems: Streaks, lines, or blotches on prints disrupt the smoothness and clarity of your documents, affecting readability and aesthetics.
  • Workflow Disruptions: Printer downtime due to imaging unit issues can disrupt your workflow, leading to delays in important tasks and projects.

By proactively replacing your color imaging unit following manufacturer recommendations or at the first signs of deterioration, you can enjoy several benefits.

Not only will you improve print quality with vibrant colors, crisp text, and smooth graphics, but you'll also extend your printer's lifespan, saving you from premature replacements and downtime.

Additionally, a reliable printer means you don’t have to worry about work interruptions that can prevent you from meeting deadlines and maintaining productivity levels.

In short, replacing your color imaging unit is a smart investment in the long-term performance and reliability of your Xerox C410/C415 printer.
